Camlock Fitting A – 1/2INCH

R65.00 incl. VAT

Camlock Fitting A

Stainless Steel Camlock Coupling Operating Pressure
Size Working Pressure
1/2″ 150 psi
3/4″ to 2″ 250 psi
2 1/2″ 225 psi
3″ 200 psi
4″ 5″ & 6″ 100 psi
Stainless steel Cam & Groove Coupling Type A Adapter
Picture Size (inch) 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4 5 6
Stainless steel camlock coupling Part A – Male adaptor by female thread A Overall length (inch) 1 5/8 1 1/2 1 31/32 2 7/32 2 3/16 2 19/32 2 11/16 2 29/32 3 11/64 3 1/4 3 1/4
B Adapter length (inch) 1 1/16 1 1 5/16 1 9/16 1 5/8 1 7/8 1 15/16 2 1 1/16 2 5/16 2 1/4
C Distance across flats (inch) 1 1 5/16 1 1/2 1 15/16 2 9/32 2 11/16 3 1/4 3 1/4 5 6 17/32 6 1/4

In stock

Compare

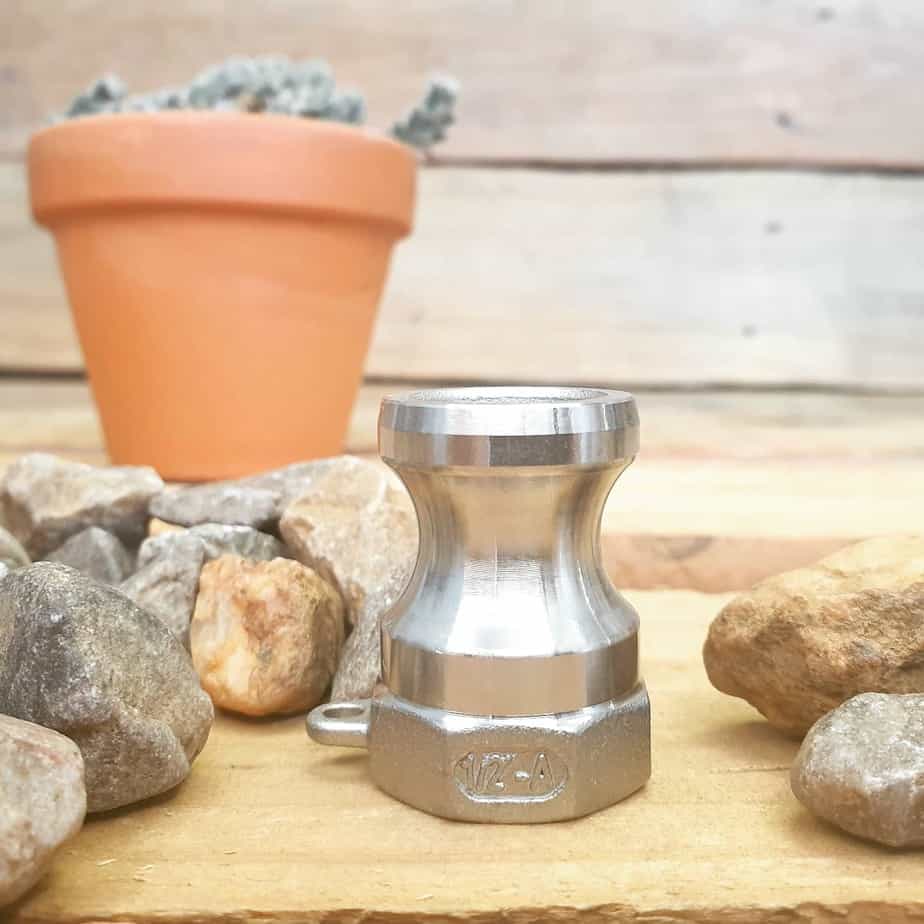

Camlock Fitting A

Type A stainless steel camlock couplings have male adaptors & female threads of the same size. The male grooved end can be inserted into any female couplers such as Type D, B, C & Dust Cap with identical size. Various gaskets are provided. Standard Buna-N, EPDM, PTFE, food grade silicone gaskets are used in different applications. Make sure the materials are compatible with the media to be transported. Low pressure stainless steel camlock couplings are very compatible with seawater, waste water, hydraulic fluids & coolants.

Stainless steel camlock adapter type A.

Features:

  • Excellent corrosion resistance;
  • No additional tools needed;
  • No contamination;
  • High working temperature yet high strength.

Product description:

  • Body material: stainless steel 316;
  • Handles & pins: stainless steel 304;
  • Gaskets: Buna-N, EPDM, PTFE & food grade silicone gasket;
  • Size: 1/2″ to 6″;
  • Thread: NPT, BSPP, BSPT;
  • Working pressure: no more than 250 psi;
  • Temperature range: -150°F to +500°F (-101°C to +260°C);
  • MOQ: 500 pcs.

Warning: All of stainless steel cam lock fittings are NOT suitable for compressed air & steam applications.
